8ch H.265 Network Nvr 5mp Ip Onvif Wdr Ir 88 Outdoor Poe Security Camera System

Description

High End 8CH 12MP 2592x1920P NVR With 3TB  Hard Drive & (8) 5.0 MP 2.8-12mm Varifocal Camera System

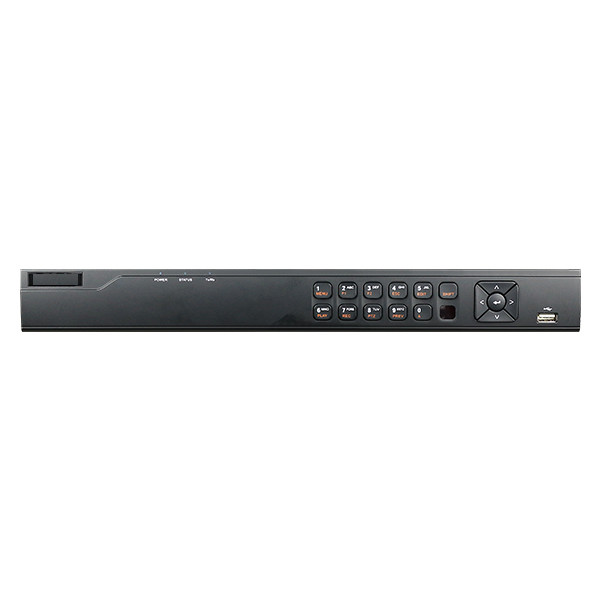

NVR Feature

Quad-core 8 CH NVR, Support Live View, Storage, and Playback up to 12.3MP IP Camera, 80MB Input Bandwidth, 8 Built-in PoE, 4K (3840x2160) HDMI, VGA, CVBS, 4 POS via TCP/IP, H.264/H.264 Zip+, H.265 Ready

• Quad-core 8 Channel Network Video Recorder
• Support Live View, Storage, and Playback up to 12.3MP IP Camera
• 80MB Input Bandwidth
• 8 Built-in PoE
• 4K (3840x2160) HDMI, VGA, CVBS Video Output
• 2 SATA up to 12TB HDD
• 4 POS via TCP/IP
• Support 6MP / 12.3MP Fisheye
• Support H.264/H.264 Zip+, H.265 Ready

Recorder Series

Platinum Series

Recorder Channel

8-Channel

Recorder Case

1U Case

Recorder Technology

IP / NVR

Featured Product

No

Specifications

Video/Audio Input

IP Video Input

8-CH, Up to 12MP Resolution

Two-Way Audio Input

1-CH, RCA (2.0 Vp-p, 1kΩ)

Network

Incoming Bandwidth

80Mbps

Outgoing Bandwidth

256Mbps

Remote Connection

128

Video/Audio Output

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output

1-ch

Audio Output

1-CH, RCA (Linear, 1kΩ)

Decoding

Live View/ Playback Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

8-CH

Capability

2-ch  4K, or 8-ch 1080p

Hard Disk

SATA

2 SATA Interfaces for 2 HDDs

Capacity

Up to 8TB for Each Disk

External Interface

Network Interface

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out

4/1

PoE

Interface

8 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Max. Power

≤120W

Supported Standard

IEEE 802.3 af/at

General

Power Supply

100~240V AC

Consumption

≤15W

Working Temperature

+14ºF ~ +131 ºF(-10ºC ~ +55ºC)

Working Humidity

10% - 90%

Casing

19-Inch Rack-Mounted 1U Casing

Dimension

380 × 315× 52 mm (15" × 12.4" × 2.0")

Weight

≤8.8lb (4Kg)

Bullet Camera Feature

• 5MP High Definition

• HD 1920 x 2592P

• 2.8-12mm Varifocal Zoom Lens with IR Cut

• 66IR LEDs up to 165ft

• Support Onvif

• Support OSD Menu

• 3D
  DNR, WDR, BLC, VCA

• IP66

• DC 12V, PoE


Camera

           SVN589ZW66

Image Sensor

SONY CMOS CCD

Min. Illumination

0.001Lux (F1.2,AGC ON),  0 Lux with IR

Lens

2.8 - 12 mm Varifocal Zoom Lens

Lens Mount

Φ14

Day & Night

IR cut filter with auto switch

DNR

3D DNR

Wide Dynamic Range

DWDR

Video Compression

H.264 / MJPEG/ H.264H / H.264B

H.264 Type

H.264, Baseline/Main Profile/High Profile code

Video Bit Rate

32

Kbps ~ 16 Mbps

，

CBR/VBR

Protocols

UDP, RTP, RTSP, TRCP, DNS, DDNS, DHCP, FTP,NTP,PPPOE,SMTP,UPNP

Working Temperature

/Humidity

-22 °F ~ 140°F (-30 °C ~ 60 °C)

Humidity 95% or less (non-condensing)

Power Supply

DC12V ± 10%, PoE (802.3af)

Power Consumption

Max. 5.5W (Max. 7.5 W with IR cut filter on)

IR Range

165 feet

Weather Proof Ratings

IP66

Dimensions

Φ 5.5" x 3.9" (Φ 140 x 99.9mm)

Weight

2.3lbs

 Package includes

• SVL8608-P8  HD Up to 12MP 8Channel NVR

• 3TB CCTV hard drive
• 8 x SVN589ZW
  66
  –
  2592x
  1920P
  5MP
  Manual Dome Varefocal Zoom IP POE Security Camera

• Power Supply for NVR

• CD with user manual and software

• Power Cable No Include ( single network cable
  directly connects each IP camera to the NVR supplying both power and a video signal. This time no extra power cable needed just plug one Ethernet cable for one camera and its on the go.)

• One Year warranty
